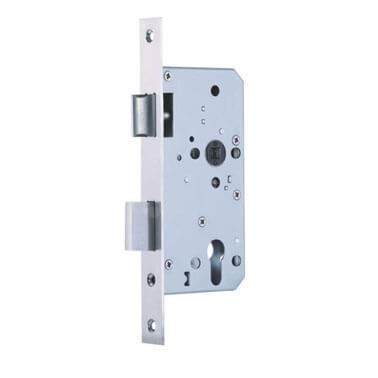

Escape Function Lock – A72ZE
Product Description
According to EN 12209-Grade 3, DIN 18251-1 For wooden or steel doors
For single-leaf doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 1-turn
Functions
The lever/knob outside is at natural state
When unlocked the door can be operated from outside by key
When unlocked the door can be operated from inside without key, but by pushing touch bar/handle, the Escape side is in accord with opening direction
For single-leaf doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 1-turn
Functions
The lever/knob outside is at natural state
When unlocked the door can be operated from outside by key
When unlocked the door can be operated from inside without key, but by pushing touch bar/handle, the Escape side is in accord with opening direction

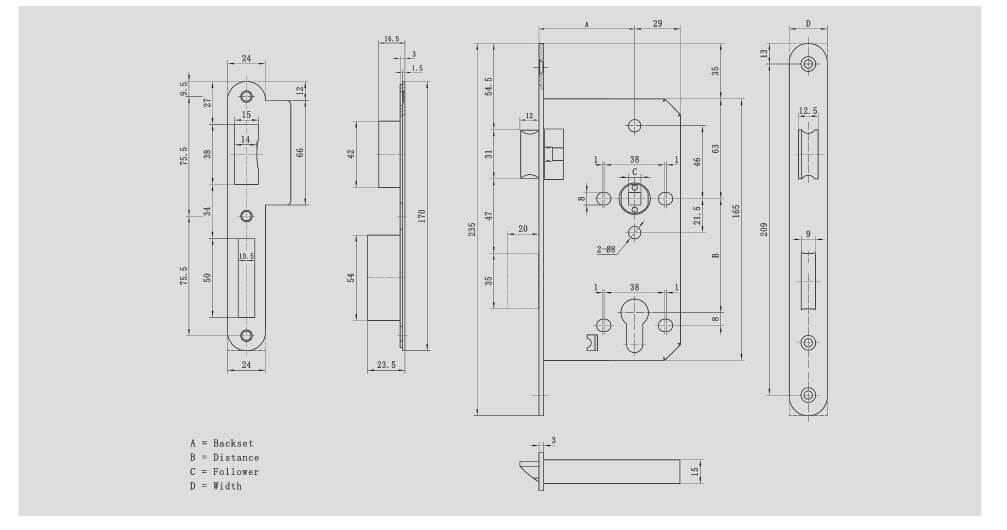

product design
Product parameters
| Sashlock | A72ZE |
| Features | According to EN 12209-Grade 3, DIN 18251-1 For wooden or steel doors For single-leaf doors Suitable for external fire and smoke doors Prepared for profile cylinders With key action Deadbolt 1-turn Functions The lever/knob outside is at natural state When unlocked the door can be operated from outside by key When unlocked the door can be operated from inside without key, but by pushing touch bar/handle, the Escape side is in accord with opening direction |
| Distance | 72mm |
| Backset | 55/60mm |
| Forend | 20/22/23/24mm |
| Latch | reversiable Material:SUS304 |
| Deadbolt | 1-turn Material:SUS304 |
| Follower | 8x8mm Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test: | Latch 200,000 Deadbolt:50,000 |
