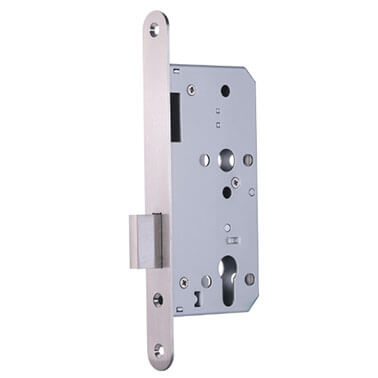

Dead Bolt Lock – A72ZD
Product Description
According to EN 12209- Grade 3, DIN 18251-1
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Dead bolt 2-turns
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Dead bolt 2-turns

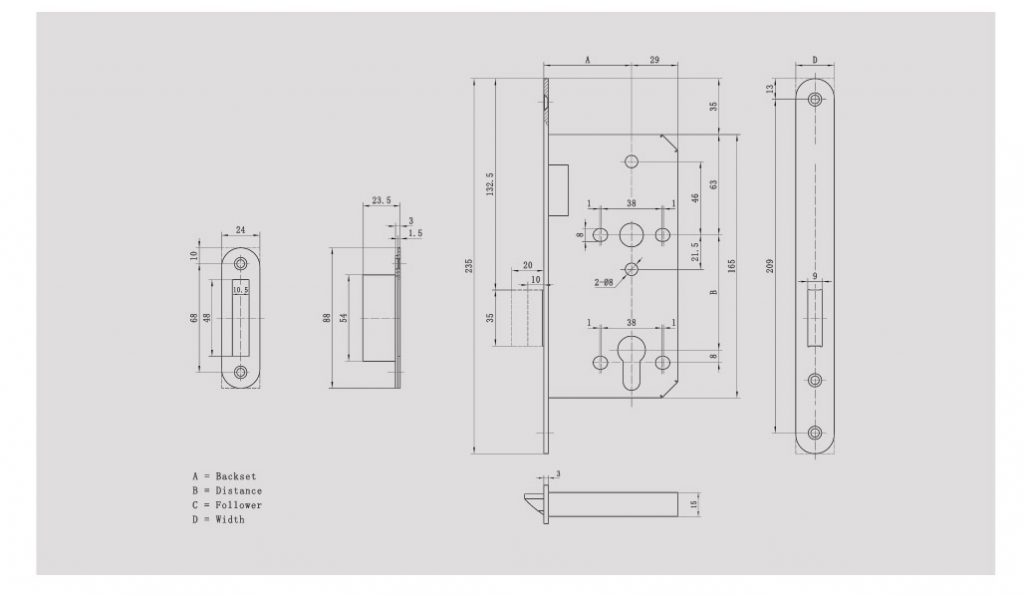

product design
Product parameters
| Sashlock | A72ZD |
| Features | According to EN 12209- Grade 3, DIN 18251-1 For wooden or steel doors For single-leaf doors Optional for rebated or non-rebated doors Suitable for external fire and smoke doors Prepared for profile cylinders With key action Dead bolt 2-turns |
| Distance | 72mm |
| Backset | 40/45/50/55/60/65/70/80/100mm |
| Forend | 20/22/23/24mm Round/Square Material:SUS304 |
| Deadbolt | 2-turn Material:SUS304 |
| Follower | 8x8mm Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test | Deadbolt:50,000 |
| Neutral salt spray test | 96h |
