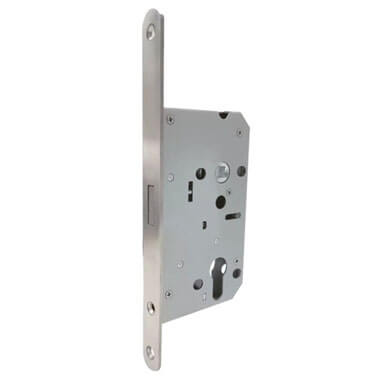

MORTISE MAGNETIC LOCK – A72Z-CS
Product Description
According to EN 12209,DIN 18251-1
For wooden doors
For single-leaf door
Optional for rebated or non-rebated doors
Prepare for profile cylinder
Magnetic latch,no friction noise
For wooden doors
For single-leaf door
Optional for rebated or non-rebated doors
Prepare for profile cylinder
Magnetic latch,no friction noise

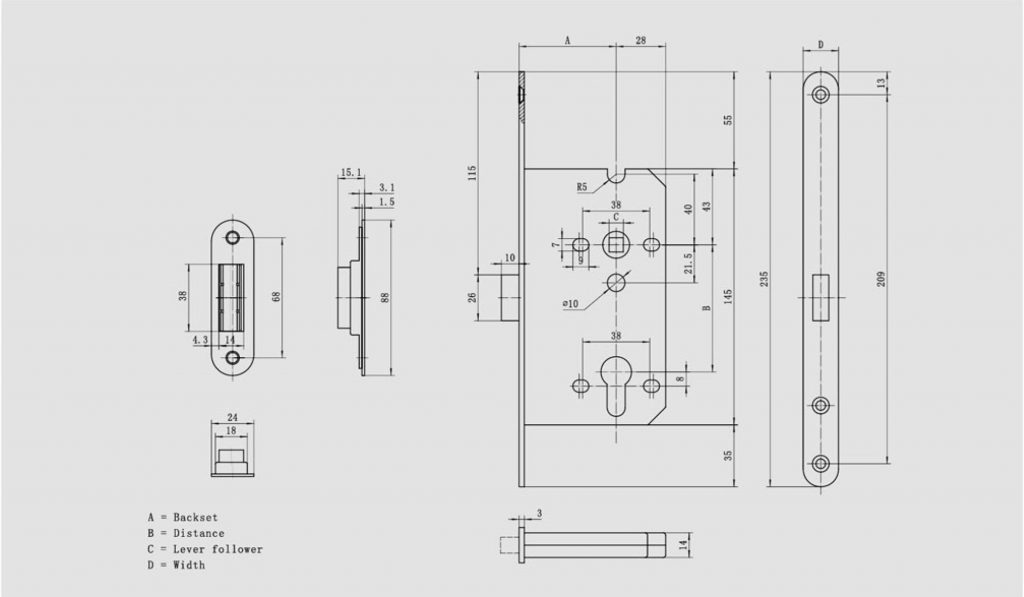

product design
Product parameters
| Sashlock | A72Z-CS |
| Features | According to EN 12209,DIN 18251-1 For wooden doors For single-leaf door Optional for rebated or non-rebated doors Prepare for profile cylinder Magnetic latch,no friction noise |
| Follower | 7mm,8mm,9mm |
| Distance | 72mm |
| Backet | 55mm |
| Type | square head,round head |
| Thickness | 3mm |
| Width | 20mm,22mm,23mm,24mm |
| Stainless steel | satin stainless steel polished stainless steel |
| Vacuum metallizing | satin brass PVD AB AC |
| Accessories | Striking plate
Fixing screws |
