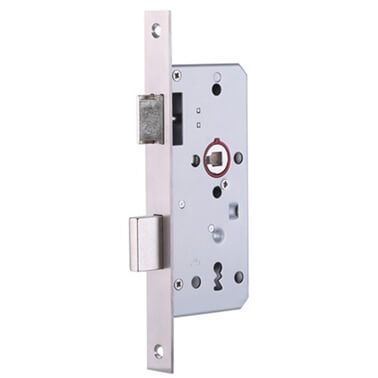

Standard BB Lock – A72KB
Product Description
According to DIN 18251-1
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Prepared for BBkey
With key action
Deadbolt 2-turns
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Prepared for BBkey
With key action
Deadbolt 2-turns
product design

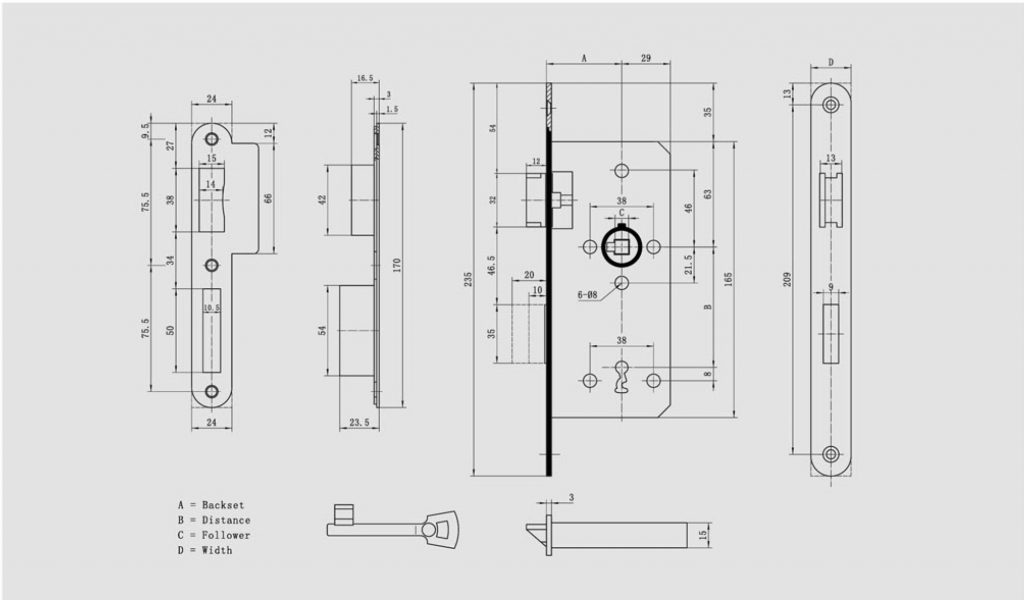

Product parameters
| Sashlock | A72KB |
| Features | According to DIN 18251-1 For wooden or steel doors For single-leaf doors Optional for rebated or non-rebated doors Prepared for BBkey With key action Deadbolt 2-turns |
| Follower | 7mm,8mm,9mm |
| Distance | 72mm |
| Backet | 40/45/55/60mm |
| Type | square head,round head |
| Thickness | 3mm |
| Width | 20mm,22mm,23mm,24mm |
| Stainless steel | satin stainless steel polished stainless steel |
| Vacuum metallizing | satin brass PVD AB AC |
| Accessories | Striking plate
Fixing screws |
