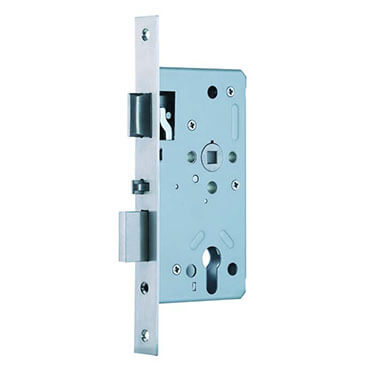

Escape Function Lock – A72HE1-A2
Product Description
According to EN 12209-Grade 3, DIN 18251-1
For wooden or steel doors
For single-leaf doors
Prepared for profile cylinders
Deadbolt 1-turn
Escape lock, divided into left and right
For wooden or steel doors
For single-leaf doors
Prepared for profile cylinders
Deadbolt 1-turn
Escape lock, divided into left and right

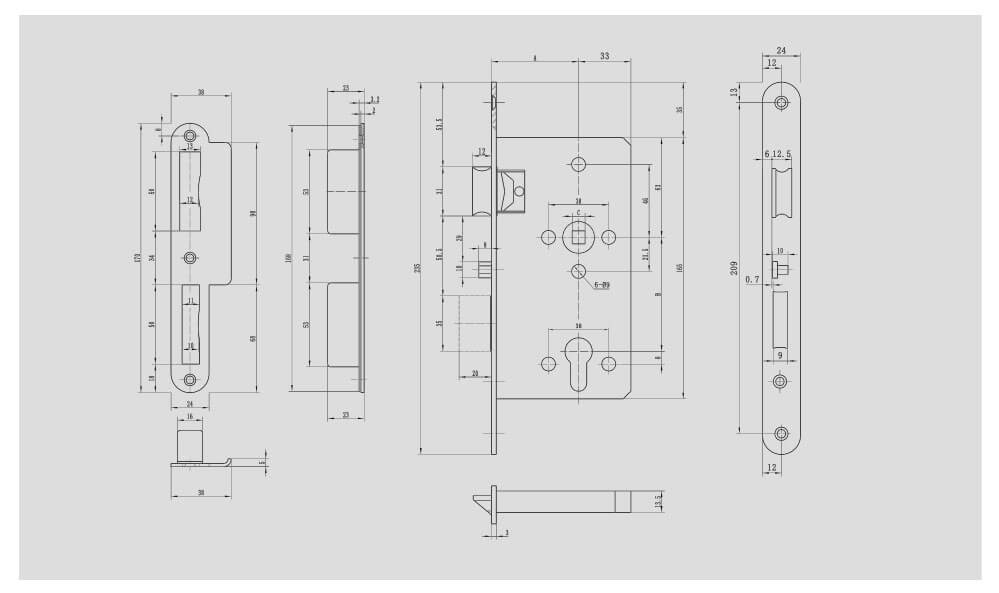

product design
Product parameters
| Sashlock | A72HE1-A2 |
| Features | According to EN 12209-Grade 3, DIN 18251-1 For wooden or steel doors For single-leaf doors Prepared for profile cylinders Deadbolt 1-turn Escape lock, divided into left and right |
| Distance | 72mm |
| Backset | 55/60mm |
| Forend | 20/24mm |
| Latch | unreversiable Material:SUS304 |
| Deadbolt | 1-turn Material:SUS304 |
| Follower | 8x8mm Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test: | Latch 200,000 Deadbolt:50,000 |
